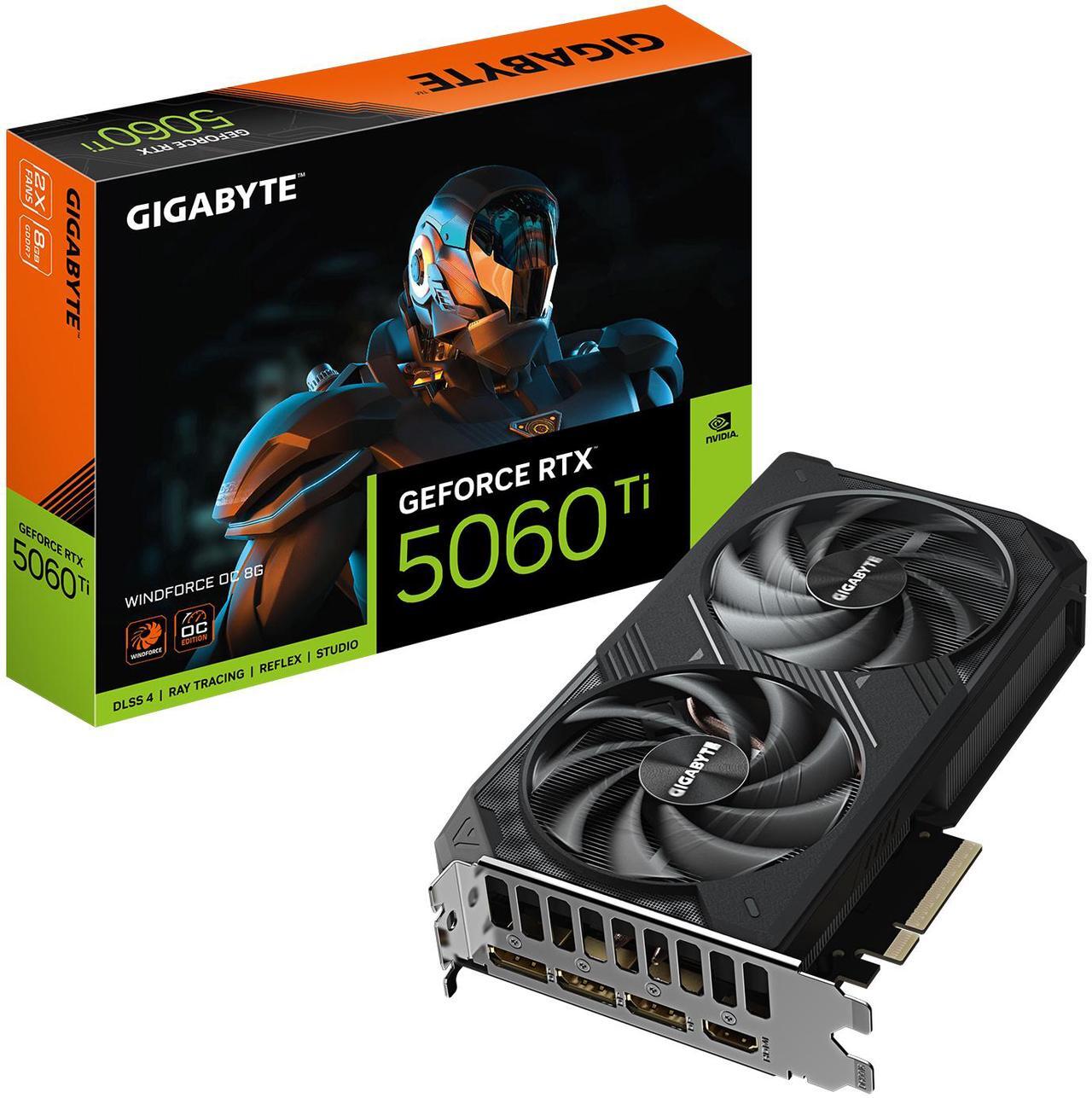

GIGABYTE WindForce TX 5060 Ti 8GB GDDR7 PCI-E 5.0 x8 ATX ( GV-N506TWF2OC-8GD )

Descripción

Brand GIGABYTE
Series WindForce
Model GV-N506TWF2OC-8GD
Part Number GV-N506TWF2OC-8GD

Interface PCI Express 5.0 x8

Chipset Manufacturer NVIDIA
GPU Series NVIDIA GeForce RTX 50 Series
GPU GeForce RTX 5060 Ti
Core Clock 2587 MHz
CUDA Cores 4608 Cores
Memory
Effective Memory Clock 28 GHz
Memory Size 8GB
Memory Interface 128-Bit
Memory Type GDDR7
3D API
DirectX DirectX 12 Ultimate
OpenGL OpenGL 4.6
Ports
Multi-Monitor Support 4
HDMI 1 x HDMI 2.1b
DisplayPort 3 x DisplayPort 2.1b
Details
Max Resolution 7680 x 4320
SLI Support No
Cooler Double Fans
Thermal Design Power 180W
Power Connector 8-Pin
HDCP Ready Yes
Form Factor & Dimensions
Form Factor ATX
Max GPU Length 208 mm
Card Dimensions (L x H) 208 x 120 x 40 mm
Slot Width 2 Slots
